Product Description:

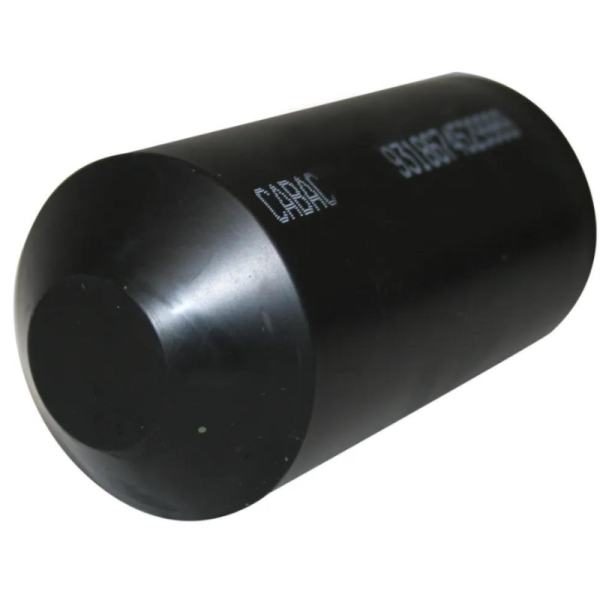

The dual wall heat shrink cap is a heat-shrinkable product with a pre-sealed single end and a double-layer structure, specially designed for the insulation, sealing and protection of wire and cable terminations. It is widely used in electrical, power, automotive, photovoltaic and marine industries for its excellent sealing, insulation and mechanical performance.
1. Structure & Working Principle
Double-layer core structure
- Outer layer: Radiation-crosslinked polyolefin, featuring high mechanical strength, good insulation, flame retardancy, UV resistance and chemical corrosion resistance, which provides the main structural protection for cable terminations.
- Inner layer: Hot melt adhesive (EVA or Polyamide PA as the main raw material), with strong adhesion to metals, plastics and rubber materials.
- Pre-sealed end: One end is pre-shrunk and sealed during production, avoiding moisture and impurity intrusion from the end after installation.
Features:
- Product Name: Dual Wall Heat Shrink Caps
- Highly resistant to common automotive fluids and solvents
- Offers excellent oil resistance insulation
- Low longitudinal shrinkage for precise fitting
- Shrink ratio of 4:1 for versatile applications
- Halogen free for environmentally friendly use
- Ideal for use as double wall heat shrink protection
- Reliable dual wall shrink tubing for enhanced durability
- Contains dual wall adhesive heat shrink tubing for superior sealing
Technical Parameters:
| Mainly Used In |
PILC Cable Terminations |
| Compliant |
RoHS Compliant |
| Min Shrink Temperature (°C) |
70 |
| Halogen Free |
Halogen Free |
| Highly Resistance To |
Common Automotive Fluids And Solvents |
| Offering |
Oil Resistance Insulation |
| Packing |
Roll |
| Shrinkage |
Low Longitudinal Shrinkage |
| Temperature Range (°C) |
-45 to 125 |
| Elongation |
400% |
Applications:
- Power & Telecommunications: Sealing protection of cable terminations during laying, storage and maintenance; insulation and moisture-proof of overhead lines, underground cable terminals and distribution cabinet internal wiring.
- Automotive & Rail Transit: Waterproof and oil-proof sealing of wire harness terminals, battery connectors, sensor wire ends and automotive high-voltage wire terminations.
- Electrical Equipment Manufacturing: Insulation and sealing of motor lead-out wires, transformer terminals, generator wiring ends and switchgear internal conductors.
- Renewable Energy & Outdoor Engineering: UV and salt spray resistant protection of photovoltaic cable terminals, wind power tower internal cables and street lamp wiring ends.
- Marine & Offshore Engineering: Corrosion and water-proof sealing of shipboard cables and offshore platform wiring (resistant to seawater erosion and high humidity).
